HCWA TwinMaster Lateral

If you can not find the datasheet feel free to contact us.

Jump to Product Overview

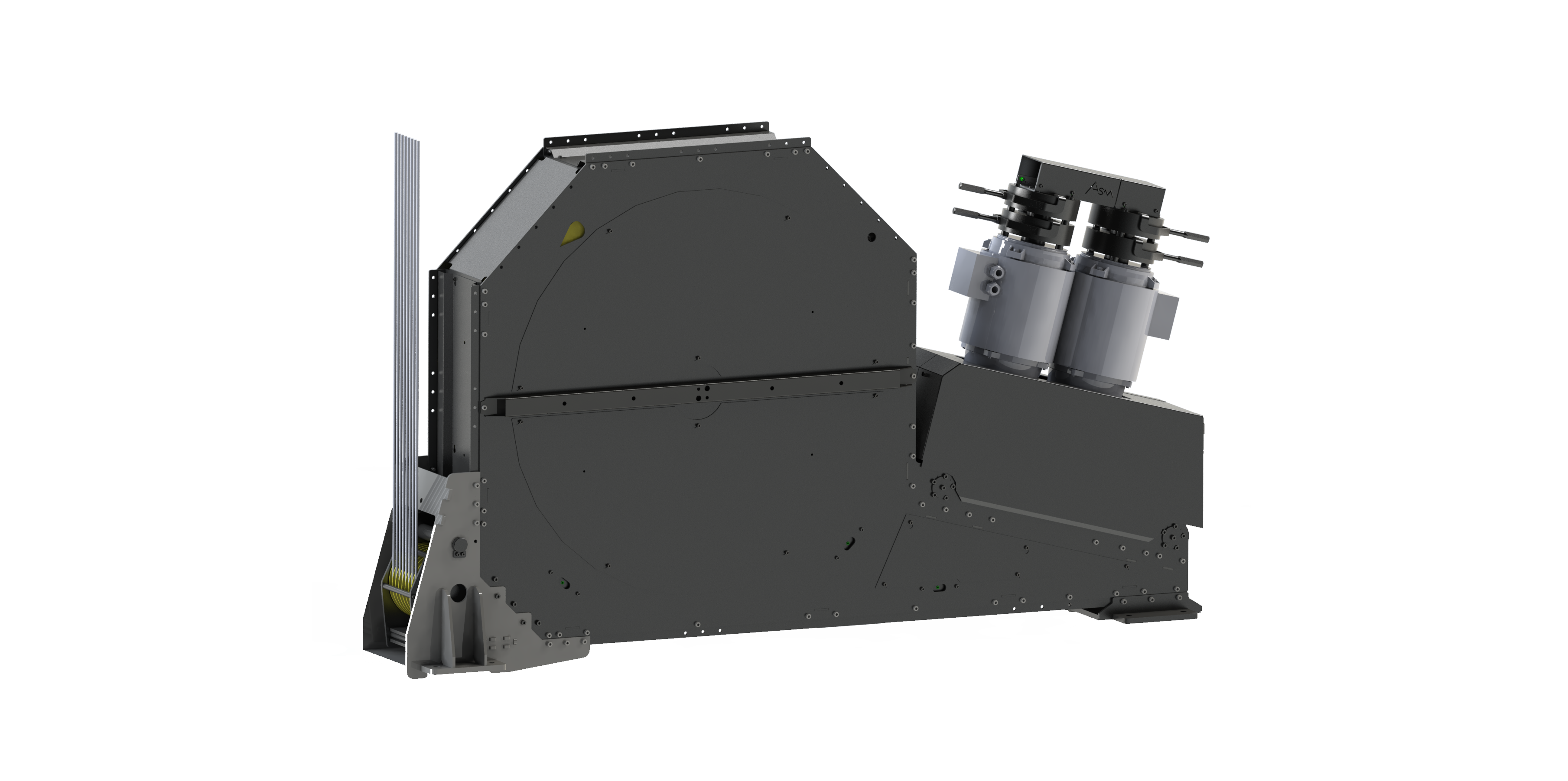

The HCWA TwinMaster Lateral is a powerful variant of the TwinMaster range, designed for high-performance lifting with extended travel capabilities. It is ideal for demanding stage and scenery applications where precision, reliability, and safety are key.

The HCWA TM LD is available with variable speeds of up to 1,8 m/s, offering a load capacity of up to 1250 kg on ropes and a maximum travel distance up to 36 meters.

Both versions feature a patented double worm gear with a dual-output reduction system, ensuring full redundancy and exceptionally smooth operation. Designed in strict compliance with DGUV V17/18 and EN 17206 regulations, the hoist includes a gearbox-integrated safety catch for enhanced protection.

Like the rest of the TwinMaster range, the HCWA TM LD is built to meet both local and international safety standards and seamlessly integrates with a wide range of professional control systems, making it a versatile and robust solution for advanced stage and scenery lifting needs.

STANDARD FEATURES & BENEFITS

  • Fully redundant, two channel safety hoist concept with international patented double worm gearbox with safety catch
  • two motors, four independent theatre brakes, two encoders, and the balancer
  • Equipped with loadcell
  • Zero fleet hoist: no interfering rope angles
  • Compact hoist design of less than 340 mm, without mounting brackets
  • High precision positioning of the load is achieved due to large drum diameter
  • The steel frame inside the cast polyamide drum prevents drum collapse in event of a fire
  • Silent and smooth-running of ropes is ensured by cast polyamide drum (long life expectancy)
  • SIL3 ready and can be coupled with SIL3 control, such as ASM GENESIS SIL3 control

THE HCWA TM LATERAL RANGE

HCWA TM LD 218 and TM LD 222 1000

  • Standardly equipped with a drum consisting of 6 grooves with 8 mm ropes
  • Max travel: 30 m

HCWA TM LG 1200 and TM LD 222 1200

  • Standardly equipped with a drum consisting of 8 grooves with 8 mm ropes
  • Max travel: 36 m

HCWA TM LD
Model TM LD 1000 TM LD 1200
Max. travel (with 8 mm rope)* 30 m 36 m
Load bearing line** Rope, 8 mm
Number of ropes (standard) 6 8
Safety system 4 independent theatre brakes
Dimensions (H x W x D) 1166 x 320 x 2173 mm 1375 x 340 x 2373 mm

* Max travel comes without extra safety turns, but with enough rope to allow the dead end function. Please contact ASM or your ASM partner for the max travel with safety turns.
** Longer travel possible on request

  Drive unit Motor performance Available drum diameter Speed in m/s* Total capacity in kg ELL in kg Own weight of load bar in kg
HCWA TM LD Drive 218 18,4 kW
(2 x 9,2 kW)		 1000/1200 1,2 1000 800 200
1,5 900 700 200
1,8 800 600 200
Drive 222 22 kW
(2 x 11 kW)		 1,2 1250 1000 250
1,5 1250 1000 250
1,8 1000 800 200

* Faster speed possible on request, with total load capacity reduction. Contact ASM to review individual case.

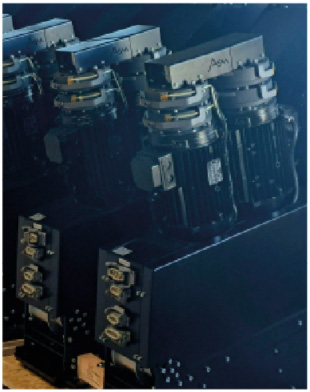

Photos of Application
