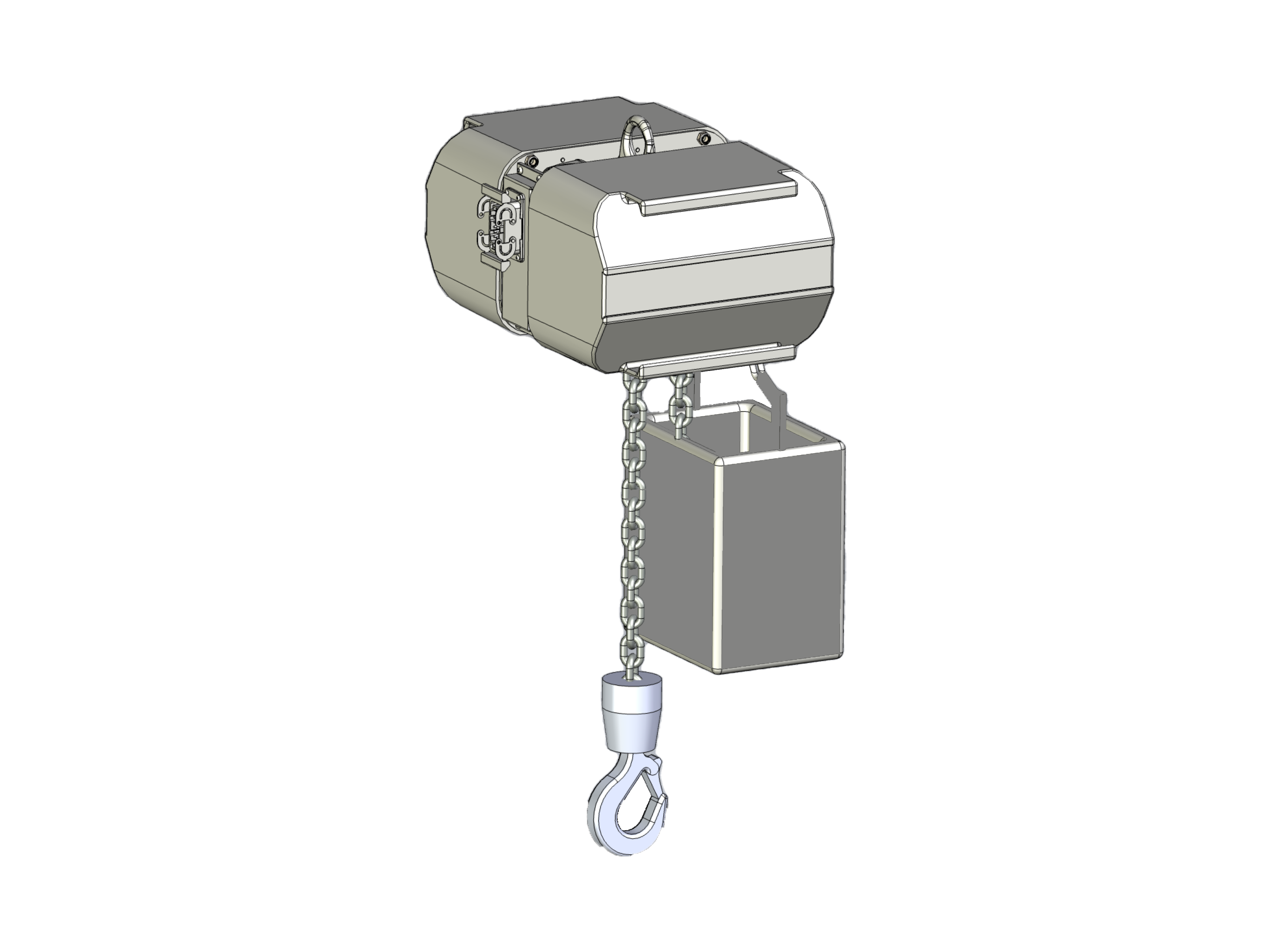

Chain Hoist OttO Family
The OttO family is suitable for a wide range of applications such as arenas, studios, theatres, multi-purpose halls, on stages and for any other professional application with specific safety requirements. The family is offered in various versions for different lifting speeds and loads.
All OttO hoists feature the innovative chain wheel X-Drive technology with chain sprockets with eight pockets, which ensures that all chain links are subjected to even loads.

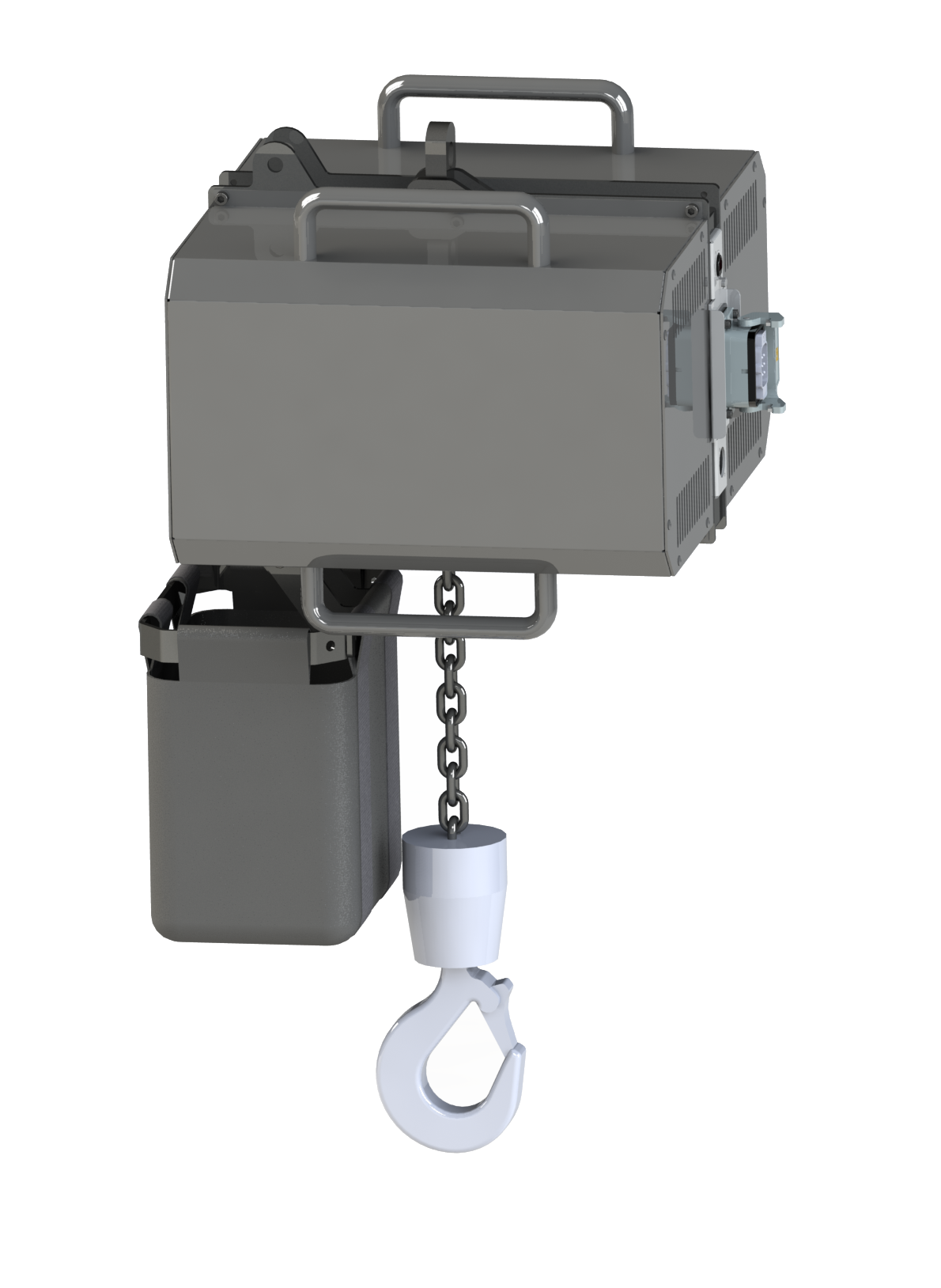

The hoist is delivered with four easily accessible handles for simple mounting. The OttO range can easily be converted from lifting to self-climbing operation.
All our chain hoists are supplied with a DIN hook or eyelet.
Depending on model, each hoist has a standard lifting capacity of up to 1,000 kg with a fixed or variable speed up to 18m/min.
All ASM hoists are designed in strict conformity with the DGUV V17 and EN 17206 regulations and are designed to allow performing flying of people.
All ASM chain hoists are made to be SIL 3 ready and can be coupled with a SIL3 control, such as ASM GENESIS SIL3 control.
STANDARD FEATURES & BENEFITS
- Silent and smooth running,
- Compact dimensions
- Optimal capacity to own weight ratio
- The special x-drive chain wheel ensures smooth running, virtually eliminating the bounce associated with conventional square chain wheel
- Delivered with four easily accessible handles for simple mounting
- Supplied with a EN normed hook or eyelet
- All ASM OttO hoists can easily be converted from lifting to self-climbing operation.
THE OttO RANGE
The OTTO 250-12 models with speed 12 m/min are equipped as standard with a dynamic self-locking gear and an extra safety catch integrated in the gearbox. The equipment with a dynamic self-locking gear allows the operation without brakes. It ensures a smooth deceleration of the load of 250 kg even in the event of a power failure. Since brakes are not required, the hoist requires less maintenance. The hoist is delivered with an integrated Power Pack.
The control possibilities reach from a 24V, third party control to a full synchronous ASM GENESIS SIL3 control
The OTTO 500-4 models with speed 4 m/min are equipped as standard with a dynamic self-locking gear and an extra safety catch integrated in the gearbox. The equipment with a dynamic self-locking gear allows the operation without brakes. It ensures a smooth deceleration of the load of 500 kg even in the event of a power failure. Since brakes are not required, the hoist requires less maintenance. The hoist is delivered with an integrated Power Pack.
The control possibilities reach from a 24V, third party control to a full synchronous ASM GENESIS SIL3 control.
The OTTO 1000-4 models with speed 4 m/min are equipped as standard with a dynamic self-locking gear and an extra safety catch integrated in the gearbox. The equipment with a dynamic self-locking gear allows the operation without brakes. It ensures a smooth deceleration of the load of 1000 kg even in the event of a power failure. Since brakes are not required, the hoist requires less maintenance.
The control possibilities reach from a 24V, third party control to a full synchronous ASM GENESIS SIL3 control.
Double-reeved operation possible.
The OTTO 1000-18 models with speed 18m/min are equipped as standard with an extra safety catch integrated in the gearbox and two silent theatre brakes.
The hoist allows the highest available performance for scenic applications, which means operating in high speed while positioning exactly.
The high duty cycle makes the hoists especially suitable for performances in scenic applications.
The high-end version of the OttO family is characterized by a high-performance servo motor (synchronous), which allows loads to be moved smoothly and quietly over a very long time period.
The control possibilities allow a full synchronous group drive with ASM GENESIS SIL3 control or a third-party control.
Double-reeved operation possible.
The OTTO 1250-15 models with speed 15m/min are equipped as standard with an extra safety catch integrated in the gearbox and two silent theatre brakes.
The hoist allows the highest available performance for scenic applications, which means operating in high speed while positioning exactly.
The high duty cycle makes the hoists especially suitable for performances in scenic applications.
The control possibilities allow a full synchronous group drive with ASM GENESIS SIL3 control or a third-party control.
OttO Chain Hoists |
|||||
|---|---|---|---|---|---|
OttO 500-4 |
Otto 1000-4 |
OttO 1000-18 |
OttO 1000-18- Servo |
OttO 1250-15 |
|
| Max (variable) speed in m/min: |
4 | 18 | 18 | 15 | |
| Hoist capacity in kg on chain: |
500 | 1000 | 1250 | ||
| Number of chain (standard)*: |
1 | ||||
| Load bearing line: |
chain 7 x 21 mm | chain 10 x 28 mm | |||
| Max travel in m: | 40*** | ||||
| Safety system: | self-locking gear | two brakes | |||
| Motor performance in kW: |
0,75 | 1,5 | 3 | 3,8 | 3 |
| Installation Method | hanging or self-climbing ** | ||||
*version available on request as OttO 250, with a maximum load capacity of 250 Kg & max speed 12 min/m
**in self-climbing mode the carrying capacity = hoist capacity – own weight including chain
***more on request
The high duty cycle makes the hoists especially suitable for performances in scenic applications.
The control possibilities allow a full synchronous group drive with ASM GENESIS SIL3 control or a third-party control.
Chain and chain bag have to be ordered separately.
As ASM engineered each hoist to their fullest capacity, each model has their specific composition which cannot be altered. Special models can be made on request.
